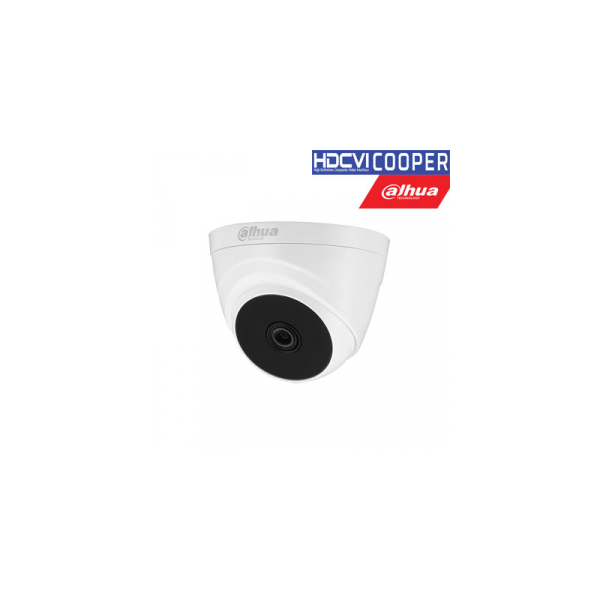

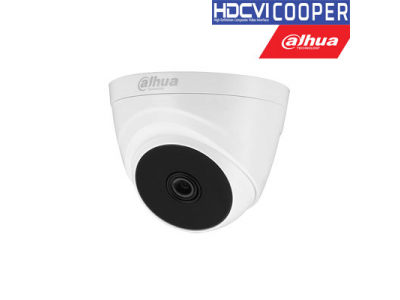

HD-CVI kamera HAC-T1A21P

Features:  • Max. 30fps@1080P • HD and SD output switchable • 2.8mm fixed lens • Max. IR length 20m, Smart IR • DC12V    Technical Specifications:  Camera • Image Sensor 1/2.7" CMOS • Effective Pixels 1920(H)×1080(V), 2MP • Scanning System Progressive • Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s • Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on • S/N Ratio More than 65dB • IR Distance Up to 20m (66feet) • IR On/Off Control Auto / Manual Lens • Lens Type Fixed lens / Fixed iris • Mount Type Board-in • Focal Length 2.8mm • Max Aperture F1.85 • Angle of View H: 93° • Focus Control N/A • Close Focus Distance 800mm (500mm, 2000mm) • Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360° Video • Resolution 1080P (1920×1080) • Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P • Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) • Day/Night Auto (ICR) / Manual • OSD Menu Multi-language • BLC Mode BLC / HLC / DWDR • WDR DWDR • Gain Control AGC • Noise Reduction 2D • White Balance Auto / Manual • Smart IR Auto / Manual Certifications • CE (EN55032, EN55024, EN50130-4) • FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) Interface • Audio Interface N/A Eelectrical • Power Supply 12V DC ±30% • Power Consumption Max. 2.3W (12V DC, IR on) Environmental • Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH • Start up should be done at above -40°C (-40°F) • Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Ingress Protection & Vandal • Resistance NA Construction • Casing Plastic • Dimensions 85mm×85mm×69mm(3.35"×3.35"×2.72") • Net Weight 0.09kg (0.20lb) • Gross Weight 0.13kg (0.27lb)
