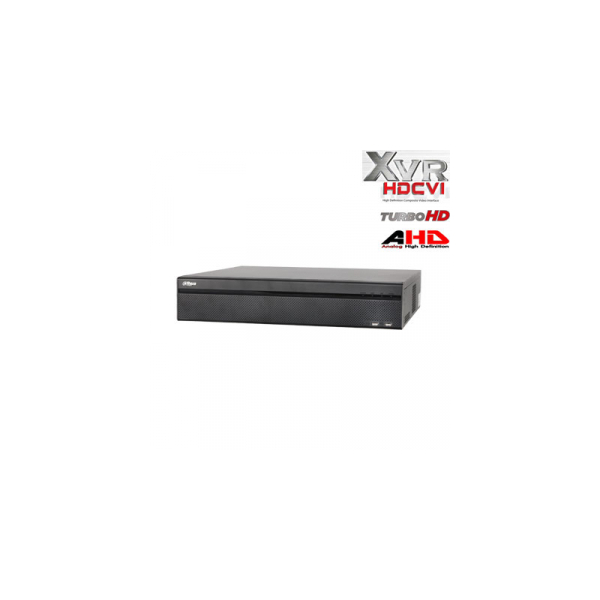

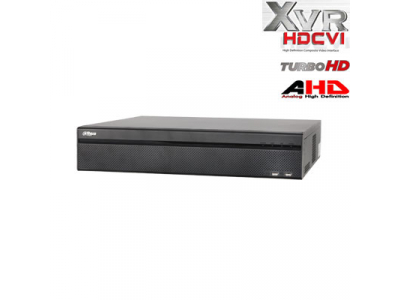

Chan. Pentabrid standalone XVR5816S

Features:  • Embedded processor • H.264+/H.264 dual-stream video compression • Support HDCVI/AHD/TVI/CVBS/IP video inputs • Max 8 channels IP camera inputs, each channel up to 5MP • Max 96Mbps Incoming Bandwidth • Smart Search and Intelligent Video System  Technical Specifications:  System • Main Processor Embedded Processor • Operating System Embedded LINUX Display • Interface 2 HDMI, 1 VGA, 1 TV • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768 Multi-screen Display • 1/4/8/9/16/25 • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Video Detection and Alarm • Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips • Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis • Alarm input 16 • Relay Output 6 • Tracking Trigger Event N/A Playback and Backup • Playback 1/4/9/16 • Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second), Smart search • Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera,Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom • Backup Mode USB Device/Network Storage • Internal HDD 8 SATA Ports, up to 8TB capacity for each disk • HDD Mode Single • eSATA 1 Port Auxiliary Interface • 4 USB Ports (2 USB 2.0 , 2 USB 3.0) • RS232 1 port, for PC communication & Keyboard • RS485 1 Port, for PTZ Control Third-party Support • Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more Audio and Video • HDCVI Camera Input 16 Channel • IP Camera Input 16+8 Channel, each channel up to 5MP • Audio In/Out 16 Audio In, 1 Audio Out • Two-way Talk 1 Mic In, 1 Mic Out, BNC Recording • Compression H.264+/H.264 • Resolution 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF Record Rate • Main stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) • Sub steram:D1/CIF/QCIF(1~15fps) • Bit Rate 1Kbps ~ 6144Kbps Per Channel Record Mode • Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss,Tampering), Alarm, Stop • Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Network • Interface 8CH: 2 RJ-45 Port (1000M) Network Function • HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera,DVR, NVS, etc.) • Max. User Access 128 users • Smart Phone iPhone, iPad, Android • Interoperability ONVIF 2.4.1, CGI Conformant Electrical • Power Supply AC100V-240V, 50/60Hz • Power Consumption <35W (Without HDD) Environmental • Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa • Storage Conditions 0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH Construction • Dimensions 2U, 440mm×455mm×95mm (17.3" x 17.9" x 3.7") • Net Weight 6.5kg (14.32 lb) (without HDD) • Gross Weight 9.8kg (21.6lb) • Installation Desktop installation/Rack-mounted
