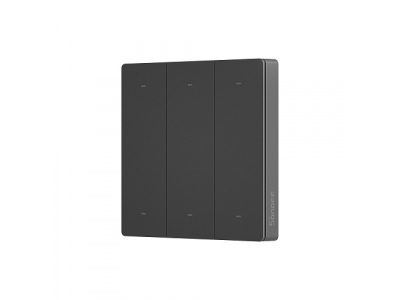

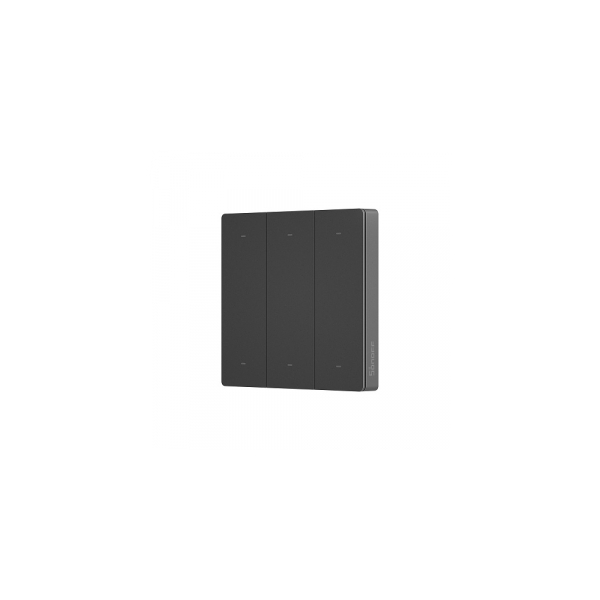

Sonoff R5 (SwitchMan) Smart Wall Switch with RF control, 6 buttons
SONOFF smart home system allows you to control your electrical appliances remotely with the EWeLink app or by voice with Amazon Alexa or Google Home. It allows you to create different scenarios, group appliances by switching on/off multiple devices with a single touch, set timers and schedules, monitor the status of your devices in real time, and share their control. Link your eWeLink with IFTTT application and extend your scene capabilities. Thanks to configurable local LAN support Sonoff smart home system can work without a cloud server.
Features:
The Sonoff R5 (SwitchMan) smart controller is a wall switch-shaped smart scene controller. It is designed for centralised control of your indoor lighting via push buttons or remote control.
R5 controller can be added to the smart devices featuring the “eWeLink-Remote” gateway, like M5 smart wall switch and MINIR3 smart switch. It can not only control all products with eWeLink-Remote gateway when there is no network connection locally but also controls any other Sonoff smart device in the smart scene when there is a network connection.
Up to 8 R5 devices can be added to one eWeLink-Remote gateway.
Once you have created smart lighting scenarios in the eWeLink app, you can play them back with this controller without using a smart device. This is particularly convenient as your phone is not always close at hand and you can control all your home lighting from one place.
By pairing the scene controller with M5 series switches, you can control the same light from different positions even when M5 is offline. Never worry and spend time on two-way or multi-way control wiring.
R5 works in 3 different modes: supports clicked, double-clicked and long-press actions to set various types of scenes as you wish. You can find the right trigger method, like one button for one device or even a room (up to 18 trigger actions).
The stylish, modern design is compatible with other Sonoff devices and blends seamlessly into the interior. With LED indicators.
You can stick the R5 on the wall as a switch or remove it as a remote control.
The R5 controller comes with 20 button stickers to mark the functions of the buttons according to your own smart scenes.
Technical specification:
Compatible with: Sonoff M5, MINIR3, etc.
Power supply: 6V (2x 3V battery).
Battery model: CR2032 (not included).
Power: max. 280W.
RF frequency: 433MHz.
Control distance: max. 90m (open space).
Number of buttons: 6.
Wireless protocol: eWeLink-Remote.
Dimensions: 86x86x13.5mm.
Housing material: PC V0 (flame-retardant).
Operating temperature: -10°C~40°C.
Dimensions: 86x71x41.5mm.
Weight: 91g.
Colour: dimm gray.
Certificates: CE/FCC/UKCA/SRRC/RoHS.
Warranty: 24 months.
