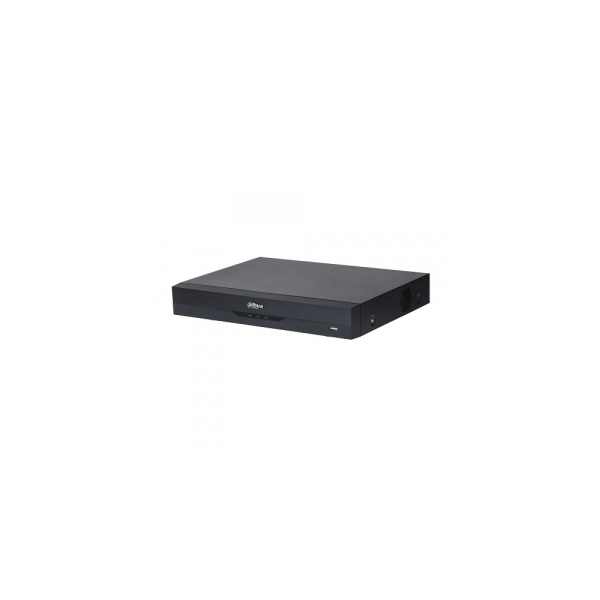

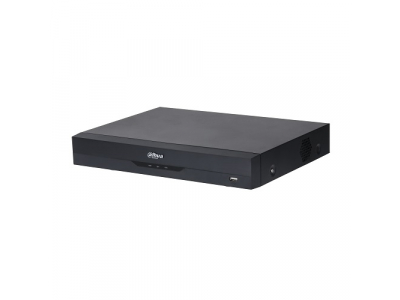

16 Chan. Pentabrid standalone XVR5116HE-4KL-I3

€ 750.20

Preču saņemšanas veids un laiks

Saņemt veikalā Elijas iela 21, Rīga

24 Decembris

€ 0.00

Piegāde ar kurjeru Rīgā (līdz mājas ārdurvīm)

25 Decembris

€ 6.99

Piegāde Latvijā (līdz dzīvoklim)

26 Decembris

€ 12.99

Omniva

26 Decembris

€ 2.99

DPD pakubode

26 Decembris

€ 4.99

Raksturojums

16 Chan. Pentabrid standalone XVR5116HE-4KL-I3

Veikala kods

11617014

Ražotāja kods

5116HE-4KLI3

EAN

6923172541857

Ir piegādātāju noliktavā

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps. 2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P@25/30 fps. 3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P@25/30 fps.

IP Camera Input

Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Main stream: All channels 4K@(1-7 fps); 6MP@(1-10 fps); 5MP@(1-12 fps); 4K-N/4 MP/3 MP@(1-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps per channel

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI ,1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36

Third-party Camera Access

Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36

Third-party Camera Access

Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+;H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS, Android

Interoperability

ONVIF 21.06, CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

When the AI Function (IVS, FACE) is not enabled:1/4/9/16 When the AI Function (IVS, FACE) is enabled:1/4/9

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm

General Alarm

Motion detection, video loss, tampering, and local alarm

Anomaly Alarm

No disk, storage error, low space, offline, IP conflict, MAC conflict

Intelligent Alarm

Face detection, face recognition, perimeter protection

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Ports

Audio Input

16-channel RCA (external)
16-channel BNC (coaxial audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

Alarm Input

16 channels

Alarm Output

3 channels

HDD Interface

1 SATA Port, up to 16 TB for a single HDD, the maximum HDD capacity varies with environment temperature

RS-485

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

VGA

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 3 A

Power Consumption

Lower than 15 W(without HDD)

Net Weight

1.45 kg (3.20 lb)

Gross Weight

2.33 kg (5.14 lb)

Product Dimensions

Mini 1U, 325.0 mm × 257.1 mm × 55.0 mm (12.80'' × 10.12'' × 2.17'') (W × D × H)

Packaging Dimensions

372.0 mm × 117.0 mm × 308.0 mm (14.65" × 4.61" × 12.13") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Installation

Desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
