DPD pakubode ZKTECO Biometric Access Controller MA500
|

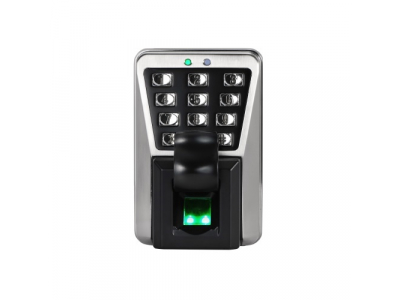

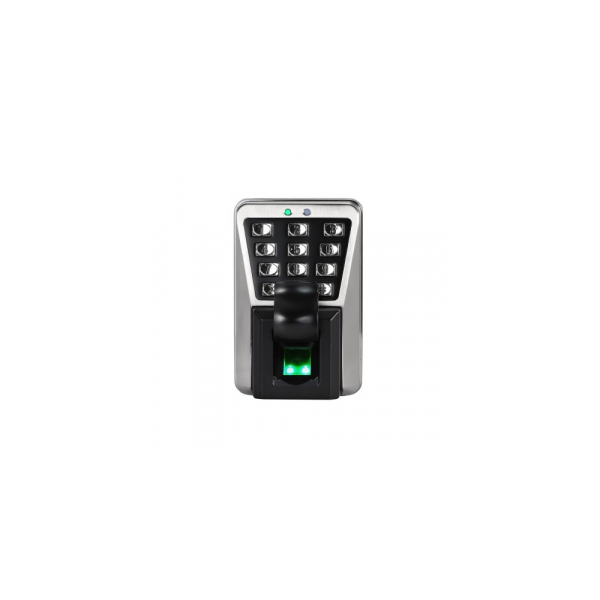

Biometric access controller with fingerprint and Mifare card reader and keypad, black, vandal resistant, IP65.
Features:
This device can be operated in standalone mode as well as network mode through TCP/IP or RS485 for software management. Can perform as Wiegand fingerprint reader with any third-party control panel. Easy to integrate with an existing system.
Large storage capacity - supports up to 3,000 fingerprints, 30.000 Mifare cards and 100.000 logs.
Features a strong anti-vandal design. Equipping with a robust metal housing and durable backlit keypad, is vandal resistant and IP65 rated (waterproof and dustproof).
Suitable to be installed in high traffic and harsh outdoor environments.
Specifications:
Card capacity: 30.000.
Log capacity: 100.000.
Fingerprint capacity: 3.000.
Algorithm for scanning fingerprints: ZKFinger VX10.0.
SDK: New PULL SDK.
Number of supported doors: 1.
Operating frequency: 13.56 MHz.
RF card: Mifare.
Output protocol: Wiegand.
Communication interface: RS485.
Inputs: lock, exit button, door sensor, alarm.
Relay: 1 (for lock).
Communication: TCP / IP.
Power supply: 12V DC, 3A.
Safety class: IP65.
Installation: wall mounting.
Dimensions: 83x127.5x74 mm.
Operating temperature: 0°C ~ + 45°C.
Color: black.
Warranty: 24 months.
