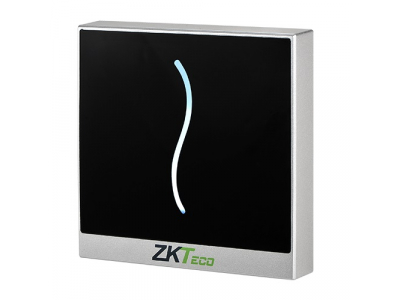

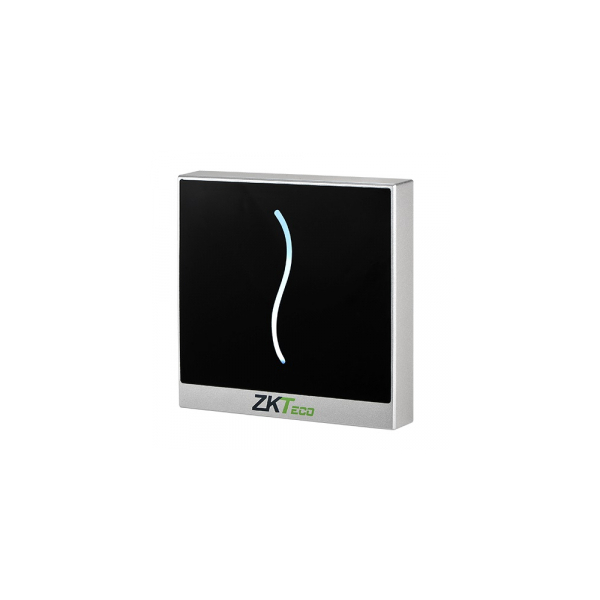

RFID card reader 13.56MHz, Wiegand 26.
Features:
13.56 MHz ISO14443A card reader suitable for ID cards.
With its elegant and robust design, the reader is easy to plug in and install and can be easily mounted on a metal door frame.
Supports one door control from both sides. LED (red, green) indicator shows allowed / denied access.
IP65 waterproof and with an operating temperature range of -10°C to +65°C, it is suitable for both indoor and outdoor installation.
Technical specification:
Operating frequency: 13.56 MHz.
Scanning distance: up to 5 cm.
Scan speed: up to 300ms.
Output protocol: Wiegand 26bit.
Current: <70mA.
Voltage: 7-13V DC.
Safety class: IP65.
Material: ABS, PC.
Operating temperature: -10°C~+65°C.
Operating humidity: 10% - 90% RH.
Dimensions: 90 x 90 x 16mm.
Warranty: 24 months.
