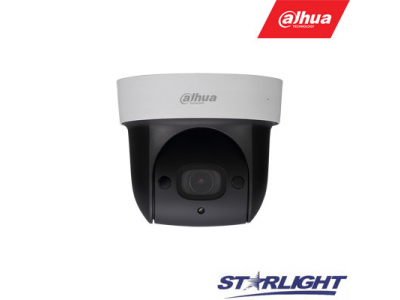

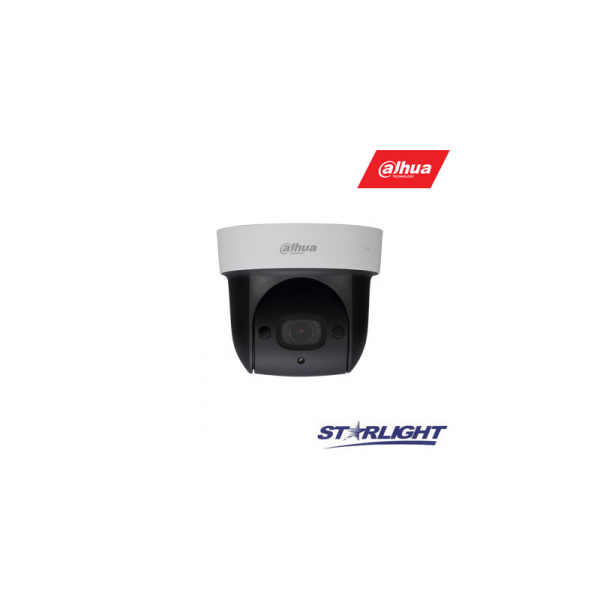

Mini 2 Megapixel HD Network IR PTZ Dome Camera, x4 zoom

Features:  • 1/2.8” STARVIS™ CMOS • Powerful 4x optical zoom • Support Triple-streams encoding • WDR, Day/Night(ICR), Ultra DNR • Max. 25/30fps@1080P • IVS • Support PoE • IR distance up to 30m  Technical Specifications:  Camera • Image Sensor 1/2.8” STARVIS™ CMOS • Effective Pixels 1920(H) x 1080(V), 2 Megapixels • RAM/ROM 256M/128M • Scanning System Progressive • Electronic Shutter Speed 1/1s~1/30,000s • Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) • IR Distance Distance up to 30m (98ft) • IR On/Off Control Auto/Manual • IR LEDs 4 Lens • Focal Length 2.7mm~11mm • Max. Aperture F1.6 • Angle of View H: 112.5° ~ 30° • Optical Zoom 4x • Focus Control Auto/Manual • Close Focus Distance 100mm~ 1000mm PTZ • Pan/Tilt Range Pan: 0° ~ 360° limited; Tilt: 0° ~ 90° • Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s • Preset Speed Pan: 100° /s; Tilt: 60° /s • Presets 300 • PTZ Mode 5 Pattern, 8 Tour(up to 32 preset per tour),Auto Scan • Speed Setup Human-oriented focal Length/ speed adaptation • Power up Action Auto restore to previous PTZ and lens status after power failure • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period • Protocol DH-SD Intelligence • Event Trigger • Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly • Auto Tracking N/A • IVS Tripwire, Intrusion,Abandoned/Missing • Advanced Intelligent Functions Face Detection Video • Compression H.265/H.264/MJPEG(Sub Stream) • Streaming Capability 3 Streams • Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) Frame Rate • Main stream: 1080P/720P/D1 (1 ~ 25/30fps) • Sub stream1: D1/CIF(1 ~ 25/30fps) • Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) • Bit Rate Control CBR/VBR • Bit Rate H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps • Day/Night Auto(ICR) / Color / B/W • Backlight Compensation BLC / HLC / WDR (120dB) • White Balance Auto, ATW, Indoor, Outdoor, Manual • Gain Control Auto / Manual • Noise Reduction Ultra DNR (2D/3D) • Motion Detection Support • Region of Interest support • Electronic Image Stabilization (EIS) N/A • Defog Support • Digital Zoom 16x • Flip 180° • Privacy Masking Up to 24 areas Audio • Compression G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2 Network • Ethernet RJ-45 (10XBase-T/100Base-TX) • Wifi N/A Protocol • IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x Interoperability ONVIF Profile S&G, API • Streaming Method Unicast / Multicast • Max. User Access 20 users • Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB • Web Viewer IE, Chrome, Firefox, Safari • Management Software Smart PSS, DSS, DMSS • Smart Phone IOS, Android Certifications • CE: EN55032/EN55024/EN50130-4 • FCC: Part15 subpartB,ANSI C63.4- 2014 • UL: UL60950-1+CAN/CSA C22.2,No.60950-1 Interface • Video Interface N/A • RS485 N/A • udio I/O Built-in Mic • Alarm I/O N/A Electrical • Power Supply DC 12V/1.5A, PoE(802.3af) • Power Consumption 10W,13W (IR on) Environmental • Operating Conditions -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH (Only for indoor!!) • Ingress Protection N/A • Vandal Resistance N/A Construction • Casing Metal • Dimensions ?132.7 (mm) x 117.9 (mm) • Net Weight 0.95kg(2.09lb) • Gross Weight 1kg(2.20lb)
