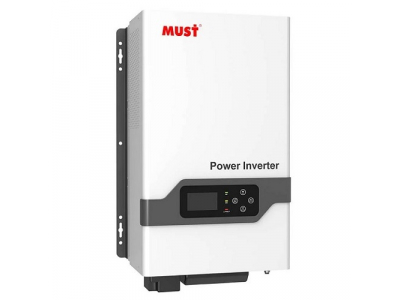

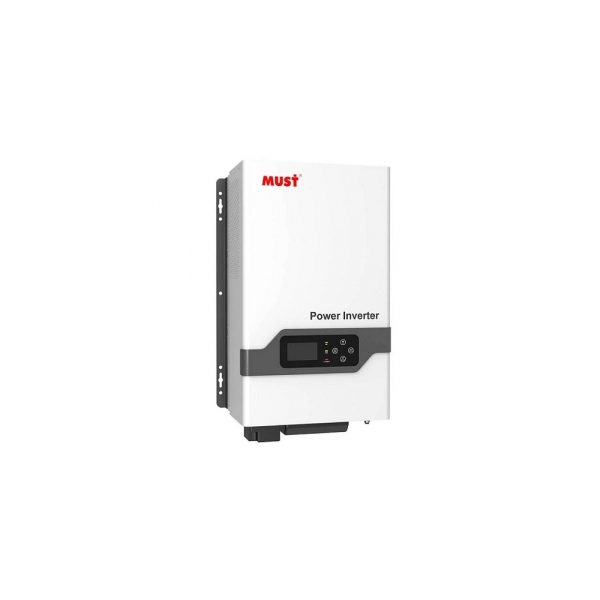

Inverter MUST 2kW, 1-phase, DC12V, PURE SINE WAVE

Informācija par preci

MUST EP3000 PLUS 2kW, 1-phase, 12V, pure sine wave inverter with integrated AC charger, from 35A to 70A. Features: EP3000 PLUS Low Frequency Power Inverter/Charger is economical pure sine wave inverter, with AC charger from 20A to 60A; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower . With pure copper transformer, it enables inverter to operate with all kinds of home appliances.  SpecificationsNominal battery system voltage12V DCInverter OutputRated power2000WSurge power6000VACapable of starting electric motor1HPWaveformpure sine waveNominal output voltage RMS220V / 230V / 240V AC ±10%Output frequency50Hz/60Hz ±0.3HzInverter efficiency (Peak)>88%Line mode efficiency>95%Power factor1.0Typical transfer time10ms (max)Input ACVoltage230V ACSelectable voltage range96~132V AC 155~280V AC (for personal computers)Frequency range50Hz/60Hz (Auto sensing) 40~80Hz Battery Minimum start voltage(10V/10.5V/11V) +0.5V Low battery alarm(10V/10.5V/11V) +0.5VLow battery cut off10V/10.5V/11VHigh voltage alarm(13.8-14.5V) +1VHigh battery voltage recover(13.8-14.5V) +0.5VIdle consumption - Search modeLoad ?100±20W (220V)ChargerOutput voltageDepends on battery typeCharge AC input breaker rating2-3K/30A Overcharge protection15.7V DC Maximum charge current60ABypass protectionInput voltage waveformSine wave (grid or generator)Nominal input frequency50Hz or 60HzOverload protectionCircuit breaker Output short circuit protectionCircuit breakerBypass breaker rating1-3K/30A Max bypass current30AOther specifications Dimensions(W*H*D)423*247*197 mmPackage dimensions(W*H*D)585*387*322 mmNet weight21.1 kgGross weight24.1 kg Operating temperature0°C to 40 °C Storage temperature-15°C to 60 °CAudible noise60dB max DisplayLED+LCD  Warranty:  The warranty of the voltage converter (inverter) is valid from the day when we (the seller) is provided with the serial number of the inverter, the purchase invoice, a certified electrician's certificate about the installed: 1) Lightning protection and overvoltage limiter (on the input side) 2) Lightning protection (between solar panels and inverter) 3) DC voltage switch between panels and inverter 4) Dedicate grounding for solar panels separated from grounding of the house  The 2-year (24-month) manufacturer's warranty begins from the day of purchase, but comes into effect only after submission of these documents. Note: Lightning strike is not a valid warranty claim, it is classified as insurance claim.
