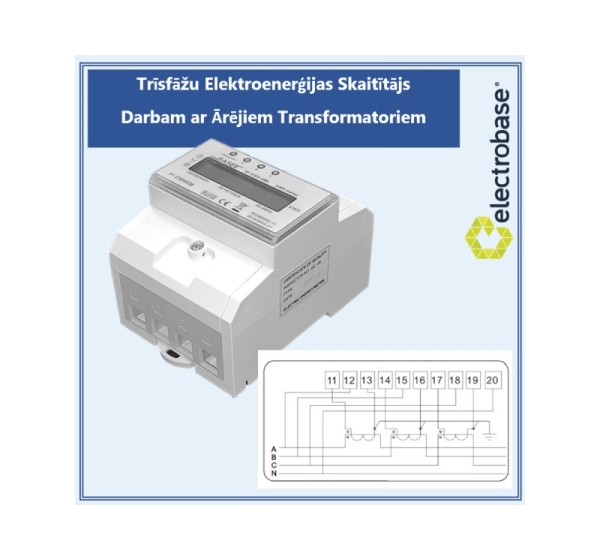

ProBase™ Three-phase electricity meter for work with External Transformers - 4 modules, 3x230/400 V, 6A

Informācija par preci

Now you can control the energy consumption of each room. The electricity meter has a pulse output to which you can connect a pulse reader and control the readings remotely. For control of pulse the LED indicator is provided. Pulse parameters - 400 imp / kWh. Very compact, the same size as four circuit breakers. Dimensions 75x75x100 mm The meter is mounted on a DIN rail. Size 4 DIN. Convenient LCD display - 7 digits. The maximum current is 6A. Voltage 3x230 / 400V Each phase connection has its own LED indicator. Measurement accuracy is 1. Class. Case material - ABS plastic, anti-flame. Weight 0.45 kg Conforms to IEC62052-11, IEC62053-21 standards
